UNITED GRINDING Group's WALTER HELITRONIC RAPTOR and HELITRONIC RAPTOR DIAMOND represent two of the newest tool-grinding solutions that deliver innovative and flexible processing.
Created for the grinding and re-sharpening of rotationally symmetrical tools, the new HELITRONIC RAPTOR offers both automation-ready flexibility and an economical, universal design for all-around tool grinding excellence. The new WALTER HELITRONIC RAPTOR DIAMOND further extends the company's Two-in-One grinding and eroding machine concept for re-sharpening carbide or PCD tools.

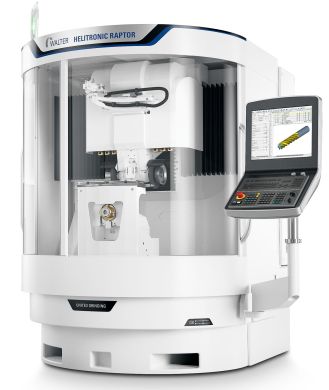

Developed with the re-sharpening sector of the rotationally symmetrical tool market in mind, the Raptor is particularly well-suited for shops that do not require features such as automatic tool support systems or automatic grinding wheel changers, but still need a high degree of flexibility in the working area for diverse types of tools.
The Raptor has a 15.4 hp (11.5 kW) spindle and a work envelope that can accommodate tools up to 12.6" (320 mm) in diameter and 11.0" (280 mm) in length, including end face operations.

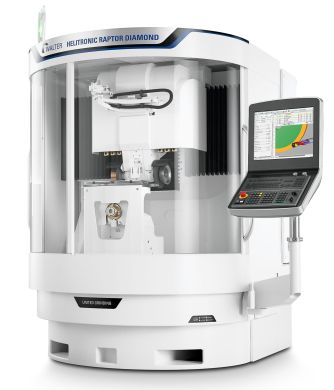

For the Raptor Diamond, Walter eroding technology achieves low cycle times and better performance thanks to fine pulse technology, which produces tools with smoother, more perfect exteriors and cutting edges along with super-fine finishes that match the level of visible shine generally reserved for polished tools. Fine pulse technology finely finishes tools made from the most common PCD types, from 10 µm grain size to coarse-grained formulations.
Developed especially for the re-sharpening and production of rotationally symmetrical PCD tools, Walter's HELITRONIC RAPTOR DIAMOND is particularly well-suited for shops that do not require features such as automatic tool support systems or automatic grinding wheel/electrode changers, but still need a high degree of flexibility in the working area for diverse types of tools.
The Raptor Diamond has a 15.4 hp (11.5 kW) spindle and a work envelope that can accommodate tools up to 15.7" (400 mm) in diameter and 10.6" (270 mm) in length, including end face operations. Like other WALTER Two-in-One EDM and grinding machines, an HSK interface for electrode/wheel grinding is standard.
In addition to low-vibration gray cast iron frames and gantry-type constructions, both the HELITRONIC RAPTOR and HELITRONIC RAPTOR DIAMOND are designed to accommodate a range of options, including top loaders with up to 500-tool capacities integrated in the working area. Other options include glass scales, A-axis torque drive, a grinding wheel measuring probe and a manual support steady rest.
