Kennametal's Lightweight 3D Printed Stator Bore Tool Perfect for Machining EV Engine Housings

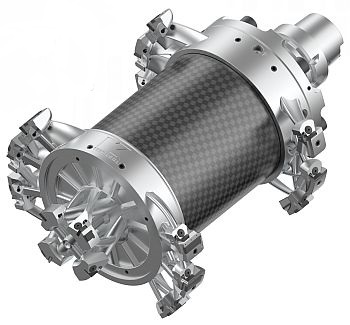

The 3D printed stator bore tool with carbon fiber body weighs 7.3kg.





Kennametal has introduced its next generation 3D printed stator bore tool for the machining of aluminum engine housings for electric vehicles.

This latest version of the tool features a newly designed arm structure, a larger center tube made of carbon fiber, and a further weight reduction of greater than 20 percent over the original design. The complex tool is capable of machining three large diameters in just one operation, saving set-up time and machining time for automotive component manufacturers and delivering the highest accuracy and surface qualities.

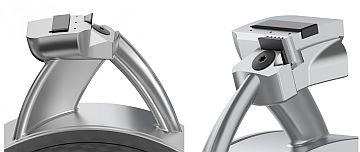

The airfoil shaped arms with through coolant and RIQ reaming technology. Complex internal and external features enabled by additive manufacturing.





"As our automotive customers expand their offerings of hybrid and electric vehicles, we continue to respond to their need for lighter weight tooling solutions. By leveraging advanced manufacturing techniques like 3D printing, we've reduced weight a further 20 percent over the first-generation tool, while improving chip control and increasing tool rigidity -- innovations that help our customers machine faster and more efficiently," says Ingo Grillenberger, Product Manager, Kennametal.

Machining three diameters in one operation, the stator bore tool ensures the alignment and concentricity of the machined surfaces whilst reducing the cycle time significantly.

The lightweight 3D printed combination tool enables a faster tool change and spin-up even on less powerful machines. The surface specifications and component tolerances are achieved without constraints.

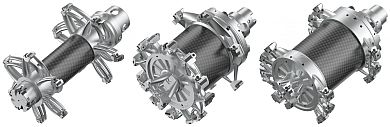

First-generation design (9.5kg) on the left, and latest tool design variants (less than 8kg) on the right for hassle free tool changing.





Hassle-free chip removal is ensured by means of airfoil shaped arms that are through coolant featured to ensure precise and powerful coolant supply to the cutting edges and guide pads. This would be difficult or impossible to economically produce with traditional manufacturing, but 3D printing enables us to realize even such complex internal features.

Additionally, the Kennametal RIQ reaming system features easy diameter adjustment and a trouble-free setup of new inserts.

Want more information? Click below.

Kennametal
