Renishaw's Latest 3D-Modelling Software Eliminates Need for CMM's

Renishaw has released FixtureBuilder 8.0, the latest version of its 3D fixture modelling software.

FixtureBuilder allows users to design metrology fixturing set-ups without having to go near their co-ordinate measuring machines (CMM) and other inspection devices. This reduces the amount of unproductive set-up time and increases the productivity of inspection machines.

The software can be used with a CAD model of the part to be inspected, which is imported into FixtureBuilder, so that the fixture can be built around it. The entire fixturing set-up, along with the part, can then be exported into inspection programming software.

FixtureBuilder offers a wide range of customer benefits, derived from Renishaw's deep understanding of metrology best practice and part inspection.

New Functionality in FixtureBuilder 8.0

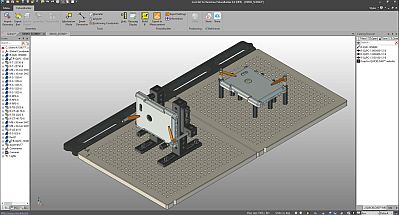

In FixtureBuilder 8.0, users can now model fixtures that use the innovative Renishaw QuickLoad™ rail system.

The QuickLoad rail system is used on CMMs and provides a secure work holding position when used in conjunction with QuickLoad base plates, which locate to the rail on either side using quick release magnets and location pins. The interchangeable design of the rail and plates aims to maximize the machine operator's ability to inspect and release parts swiftly.

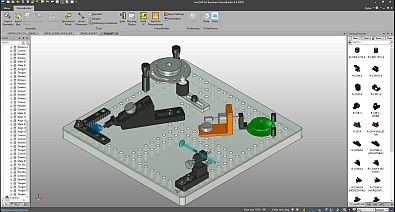

Metrology tables, M12 fixtures, 1/4-20 fixtures and many other new fixturing components have also been added to FixtureBuilder v8.0, providing users with access to an even wider range of fixturing components in the FixtureBuilder component library.

An improved mechanism mode in FixtureBuilder 8.0, provides real life movement and collision detection with increased precision, resulting in faster fixture set-ups.

Exporting the fixture model into inspection software has become faster and easier in the latest version of FixtureBuilder, making the inspection programming process more streamlined.
