Versatile Deep-Hole Drilling Machine Uses Trepanning Process; Saves Energy and Cost

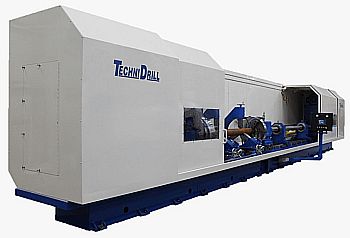

Kays Engineering's TechniDrill TBTA-10-180 is a deep-hole drilling machine using the BTA process (Boring & Trepanning Association).

The machine can drill holes up to 10 inches in diameter from solid using the trepanning process. The machine has applications in both the aerospace and oil & gas industries.

The trepanning process doesn't drill the entire diameter of the hole, only a ring of material on the periphery. Instead of turning all the removed material into chips, a core is left in the center of the hole. This enables the machine to drill larger diameter holes with less required horsepower.

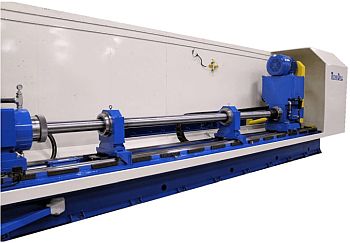

The TBTA-10-180 is a single spindle machine with 10 inches (254 mm) of trepanning diameter capacity and 180 inches (4,572 mm) of trepanning depth. It has the capability for both a rotating tool and a counter-rotating workpiece, both of which are driven by 100 HP motors.

TechniDrill deep hole drilling machines are designed and manufactured by Kays Engineering in Marshall, Missouri, USA.

Want more information? Click below.

Kays Engineering
