Free Broach Gcode Program Generator Dramatically Cuts Programming Time

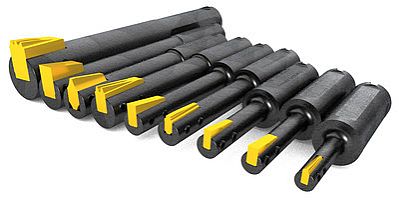

CNC Broach Tool™ LLC has created a Broach G-Code Generator which can reduce your programming time from hours down to minutes.

Programming a broaching cycle for your CNC Lathe or Mill is now as easy as entering 7-10 inputs and pressing a button. The web application will export up to 2000 lines of g-code program which the user can then copy and paste into their CNC program.

Programming a broach tool to cut in a CNC machine can be time consuming. This is because linear broaching in a CNC requires multiple passes which take small amounts of material, usually between .0006" -- .0020", per pass. A keyway which has a radial depth of .400" and a depth of cut of .001" per pass, for example, would require 400 passes. When creating a long hand Lathe or Mill program, each pass requires a minimum of 4 lines of G-code.

To use The CNC Broach Tool Program Generator:

For milling machines enter the feed axis and feed direction, accept the Terms & Conditions, copy the code and paste it into your program

Want more information? Click below.

CNC Broach Tool
