Laser System Enables Accurate Alignment; Optimizes Machine Tool Performance

Renishaw's XK10 alignment laser system has been developed to measure geometric and rotational errors of machine tools.

Used with the XK10 machine tool fixturing kit, it enables faster and easier measurements over traditional methods, such as dial gauges, autocollimators and metrology artefacts.

The XK10 can be used on linear rails to ensure that they are straight, square, flat, parallel and level, as well as to assess spindle direction and coaxiality of rotary machines.

Measuring geometric and rotational errors during machine build, maintenance and service, enables accurate alignment and adjustment of machine axes to achieve optimum performance. This reduces time during machine assembly processes and on-site service, including regular maintenance or following a collision.

System Overview

• The launch is the primary method of laser transmission for the majority of measurement types. It is used with the M unit for geometric measurements up to 30 m.



• The S unit and M unit contain both transmitters and receivers and can be set up in different configurations depending on the error type under test.
• The display unit is used to take and record measurements, as well as display live readings allowing for easy adjustment. Powered by a rechargeable battery, it allows portable operation up to 30 hours.

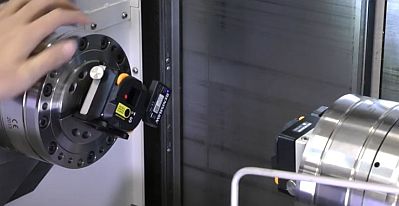

• The XK10 system includes a machine tool fixturing kit that has been designed specifically to improve repeatability and accuracy in measurements.
