Blohm's 6-Axis Grinding Machine Includes RazorTec® -- the New Wheel Cleaning Process

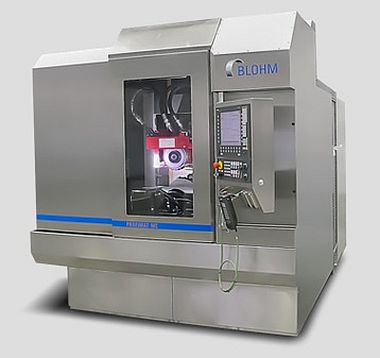

Whether precision, profile, internal or external cylindrical grinding, United Grinding's PROFIMAT MC is a highly efficient grinding center for any application.
This extremely compact traveling-column machine offers everything that modern production solutions require, with a machine width of just 2000 mm.
Different spindle variants enable diverse applications. The five-axis CNC profile grinding machines in the series can optionally be equipped with a horizontal spindle for drive capacities up to 60 kW as well as a stationary or an NC-swiveling vertical spindle with grinding spindle speeds of up to 60,000 revolutions per minute.
With a maximum cutting speed of 170 m/s, traveling-column machines are suitable for both conventional grinding tasks and for CD, IPD and all CBN methods. Equipped with the relevant accessories -- such as automatic tooling change, for example -- the PROFIMAT MC is even suitable for combination machining.
VIDEO: BLOHM PROFIMAT MC surface and profile grinding machine
With the aid of the professional Sinumerik 840D CNC control system from Siemens, virtually any grinding task is possible.
Other benefits:
- Rigid machine structure thanks to generous guide spacings
- High infeed speeds and accelerations
- RazorTec®, the new grinding wheel cleaning process
