Unique Zero Point Vise System Works with All Existing Workholding Systems

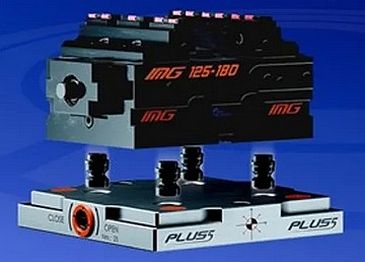

SMW Autoblok's Zero Point System -- PLUS5 V5 -- locks and unlocks pins with only 180o rotation.

Omnidirectional clamping ensures uniformity while performing precision, all-directional, clamping. This zero-point vise interfaces with all industry-standard products using 52mm or 96mm pin spacing, allowing it to easily become part of your existing workholding system.

The V5 Vise system provides self-centering operation for 5-axis machines. The device has fully protected and sealed lead screws and incorporates SinterGrip inserts for multi-vise integrations and eliminating dove tailing or crimping operations.

VIDEO: SMW Autoblok's PLUS5

An excellent quality-price ratio makes the vise ideal to locate, support, and secure workpieces in a variety of manufacturing operations, including machining, welding, and assembly.

Want more information? Click below.

SMW Autoblok
