CAD/CAM Software Now Offers Fast and Easy Hole and Edge Deburring Strategy

The innovative 5-axis automatic tool orientation mode in Open Mind Technologies' hyperMILL® 2025 ensures optimized machining, guaranteeing efficient and reliable tool paths on the most complex components.

The 5-axis automatic tool orientation mode algorithm uses a pre-analysis of the entire tool path to calculate machining sequences of simultaneous and indexed tool movements, reducing the number of inputs required for 5-axis machining and saving time when programming challenging parts.

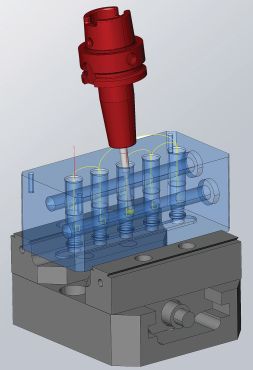

A new, fast, easy, and safe 5-axis hole deburring strategy excels at deburring sharp edges on holes and intersecting holes.

By using CAM Plan programming assistance and analysis technology to automatically recognize all the holes, the sharp edges in the model are marked for selecting the desired edges. The hole deburring technology automatically calculates toolpaths, and it supports 3-axis and 5-axis modes.

VIDEO: hyperMILL MAXX Machining: MAXXimum Performance in Drilling, Roughing, and Finishing

Also, hyperMILL® now offers a 5-axis deburring strategy for fast and efficient deburring of component edges. Users may choose between 3-axis machining and a 5-axis option which enables greater reach to more component edges, automatically generating the required inclinations as well as collision avoidance.

The pocket milling algorithm for high feed cutters in hyperMILL® 2025 has been redeveloped for 3D-optimized roughing, achieving greater efficiency during roughing as well as better machining control, especially helpful when machining large lateral in-feeds and remaining material. Contour and path radii can also be defined, resulting in improved toolpath rounding.

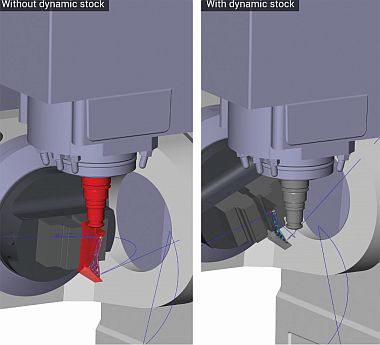

Linking movements via hyperMILL® VIRTUAL Machining Optimizer have been further optimized for actual stock conditions with new Dynamic Stock technology. Using Dynamic Stock, an updated stock is automatically generated for all machining jobs and accounted for when calculating linking movements.

Want more information? Click below.

Open Mind
