Shops Can Run Full Bar Capacity with Mazak's Largest Swiss-Type Turning Machine

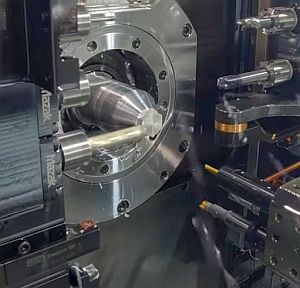

As the largest machine in Mazak's broad SYNCREX portfolio, the SYNCREX 38/9 Swiss-Type Production Turning Machine powers through high-speed production of parts from up to 1.5" (38 mm) diameter bar stock, with a nine-axis configuration that includes five spindle motors.

Shops can run full bar capacity with no special bar end preparation, and a removable guide bushing adapter enables operators to preset the guide bushing outside the machine. The machine's 10 hp (7.5 kW) main and second spindles deliver 8,000 rpm, and the machine rapids at a speed of 1,378 ipm (35,000 mm/min) in the X1, X2, Y1, Y2, Z1 and Z2 axes.

SYNCREX Series machines are built with High Damping Composite Casting (HDCC) bases for better rigidity, less thermal distortion, longer tool life and better surface finishes. For further ease of use, the 15" touch screen MAZATROL SmoothSt and SmoothSt 5 controls make it easy for the operator to quickly set tools and edit programs with onboard help screens.

VIDEO: SYNCREX 38/9X -- IMTS 2024 demo

Mazak will feature the SYNCREX 38/9 at PMTS 2025, April 1-3, in Cleveland, Ohio.

Want more information? Click below.

Mazak
