Phillips Revolutionary Laser-Powder System Turns Haas CNC's into Additive/Subtractive Hybrid Machines

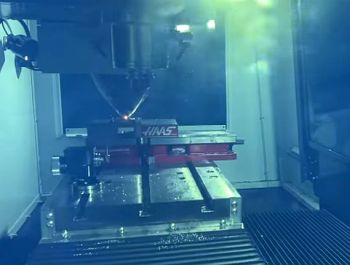

Phillips Hybrid has added to its lineup of additive +subtractive machine solutions by partnering with Laserline, Germany to offer high powered diode laser systems for metal powder deposition, integrated with Haas CNC vertical machining centers, new or retrofitted to existing machines.
This new line of Laser-Powder Hybrids complements Phillips' current offering of Laser-Wire and Wire Arc Hybrid Systems, giving you access to the best solution for your particular applications, budget and needs.
New Capabilities:
- Manufacture parts with complex geometries, especially with 4- and 5-axis configurations.
- Apply high-resolution laser cladding for corrosion and wear resistance.
- Utilize fine metal powder to create ultra-thin parts.
- Access and deposit metal in part cavities and crevices with small deposition head, ideal for die and mold repair.
- Quickly produce prototypes or make feature additions to existing parts.
- Deposit materials with very high melt points, such as tungsten or carbides, with flexible power ranges up to10 kW.
- Work with a practically unlimited range of materials or create new materials by blending powders with the multi-hopper powder feeders, ideal for research and development.
VIDEO: Phillips Hybrid Empowers Engineering Excellence at the University of Arizona
Laserline optics and homogenous top hat beam profile ensure uniform energy transfer, resulting in high-quality, high-resolution as-printed parts with minimal thermal distortion.
19" rack mount laser system includes diode laser head, electronics control compartment, and cooling system for a compact, easy-to-maintain power supply.
Laser-Powder Hybrids are available on Haas vertical milling machines including TM, VF, and UMC models, new or retrofit.
Diode lasers are exceptionally suitable for precise and energy efficient material processing. With a wide variety of laser power ranges, beam spot sizes, and powder nozzle types, the system can be tailored for specific applications.
Highly accurate powder feeders with one, two, three or four hoppers are available, covering grain sizes from 20 um to 300 um. Powder feeders come with Siemens PLC control and display. The 1- and 5- liter hopper sizes have plexiglass housings for easy visual control. Multi-hopper systems have an optional quick powder switching system via sliding cylinder.
