Siemens Run MyRobot platform can now handle parts and other functions on a KUKA robot
Siemens has introduced an automation solution for the busy, multi-tasking job shop -- a digital twin of the software and programming of its SINUMERIK 828 CNC, working in tandem with a KUKA robot, to simplify the operation and programming in part handling for the operator.

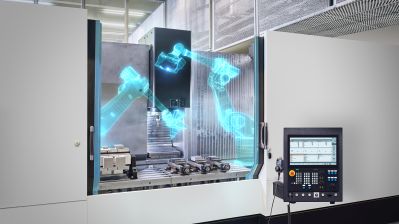

Next-level automation -- full integration of robots into the machine.
Advantages of this development include:
- Integrating the robot's programming and operation in the SINUMERIK 828 control -- everything on one screen.
- Using NC G-code and robot teach-in function for programming makes it easy-to-learn for machine tool operators.
- Robot diagnostic data shown on the NC's diagnostic screens allows for the entire automation cell to be monitored.

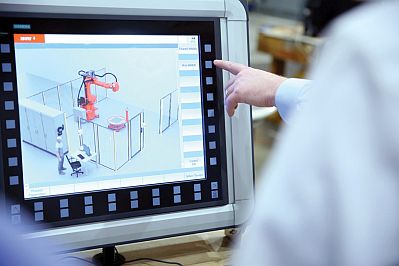

- Robotic integration can be tested in SINUMERIK 828D's digital twin software, Run MyVirtual Machine, while cutting.

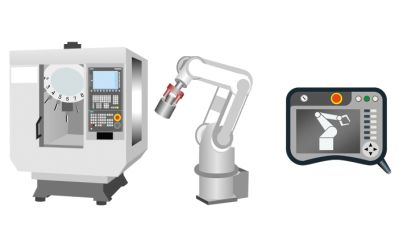

All functions of the machine and the robot can be monitored on a single pendant, eliminating the need for a second robot pendant.
Increasingly more machine shops and operators are seeing that automation is an important asset when striving to achieve consistent workpiece quality and more flexibility on the shop floor. Digitalization facilitates the higher level of automation needed and the networking of the components involved.
With this new development, Siemens is offering a cost-effective solution that incorporates the KUKA robot functionality with a line of affordable machine tools and lathes for small to medium job shops.
As Tiansu Jing, Product Manager, SINUMERIK CNC systems, explains, "The benefits of this development for the busy job shop are many. Setup, programming, operator interface and diagnostics are all improved with this system, as it easily incorporates the KUKA robot with the machine tool."
Robotic fiber placement and 3D printing enable disruptive breakthroughs in today's manufacturing processes thanks to the advantages promised by Industry 4.0, the Digital Twin, higher robotic intelligence and complex motion control.
The teach-in functions are implemented through the SINUMERIK Operate system on the control, while the proprietary SINUMERIK Run MyRobot capability of the CNC seamlessly integrates with the KUKA robot control. Jing further noted that, since there is no need to learn robotic programming, start-up time is reduced and the robot's separate control pendant is eliminated, making the operator's task simplified. The SINUMERIK CNC's HMI is used to operate both the machine tool and the robot.
From the KUKA perspective, Ron Bergamin, Key Technology Manager, Machine Tool Automation, comments, "KUKA offers machine tool builders and end-users alike the ability to incorporate advanced robotics into their equipment and onto their shop floors, with the goal of optimizing productivity and reducing operator workload. Our partnership with Siemens has resulted in the synergy that brought this development to life. It substantially expands the ability of the small and medium-sized shops to utilize robotics in their work environment."
