New MillTurn machine handles lengths of up to 8000 mm with continuous setup and operation
WFL's new M70 MILLTURN is a true high-performance center that complements the WFL machine portfolio.

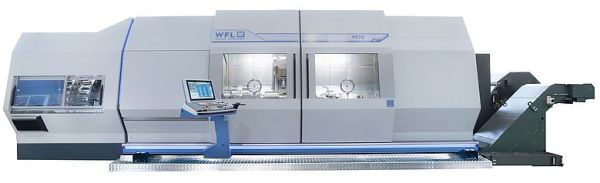

WFL's new M70 MILLTURN
The M70 MILLTURN features a well-thought-out workspace concept for machining lengths of up to 8000 mm and a swing diameter of up to 850 mm. Thanks to the WFL modular system, it offers an enormous variety of options and can be tailored to individual customer requirements.
The machine offers user-friendly accessibility of the tool magazine thanks to large, smooth-running sliding windows and tool setup during machining.
In addition, the new M70 MILLTURN offers optimum stability and geometry for maximum precision, reliable machining thanks to high pull-in forces at the tool interface, and a wide range of additional options for highly productive deep-hole drilling processes and special technologies. With workpiece weights of up to 5,000 kg, the MILLTURN is ideal for heavy-duty applications.

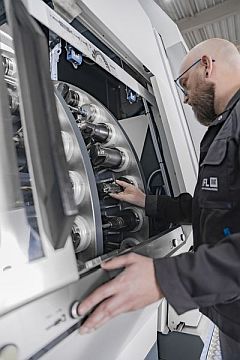

The M70 MILLTURN features the familiar, reliable disc or chain magazine with up to 200 tool positions, a tool weight of up to 35 kg, and a maximum tool length of 900 mm.
In addition to automatic tool change, setup can also be carried out during machining. This allows the magazine to be loaded across orders without any loss of time. Two magazine variants are also available for heavy special tools weighing up to 200 kg per tool.
Another feature is the extremely reliable main and milling spindle drives.
