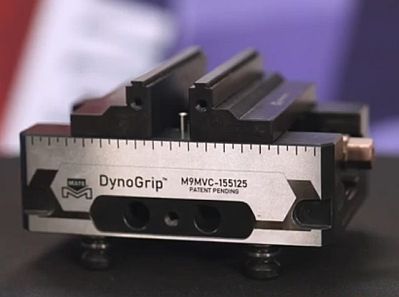

Patented DynoGrip Self-Centering Vise System Mounts to Any Machine Bed
Mate DynoGrip isn't just another entry into the compact quick-change vise market; it is a highly engineered solution designed specifically to squeeze every second of efficiency out of a CNC spindle while slashing process variability, says the company.
The standout feature of the DynoGrip system is its "best-in-class" precision. With a clamping accuracy on center to ±0.015mm (±0.0006") and a return-to-center repeatability of 0.010mm (0.0004"), it provides the level of trust required for lights-out manufacturing and high-tolerance work. This stability is paired with a patented design that ensures maximum holding power in a compact frame with virtually zero part lift, keeping workpieces exactly where they belong during heavy cuts.
Durability is baked into the hardware. The jaws are crafted from highly-alloyed tool steel, featuring a core hardness of 45-50 HRC and a surface hardness that reaches 65 HRC. To further extend the life of the tool, Mate applies its proprietary Black Diamond™ surface treatment to the vise body, pushers, and jaws. This creates a rugged, wear-resistant exterior that stands up to the harshest machining environments.
VIDEO: Mate DynoGrip™ Vises
Versatility is where the DynoGrip truly shines for a busy job shop.
The system features tool-free, reversible, and interchangeable quick-change jaws, allowing operators to swap setups in seconds. It integrates seamlessly into existing workflows via 52mm and 96mm four-post pull stud patterns, making it compatible with most Zero Point mounting systems or capable of mounting directly to the machine bed. The DynoGrip is available in 13 size variations and is made in the USA.
