Convertible Swiss Lathe Redefines Motorsports Precision with HDCC Tech

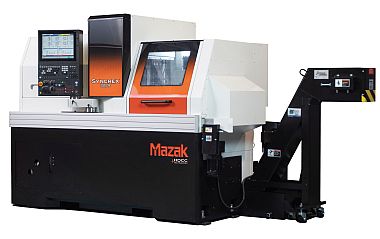

For high-volume production of small, precise motorsports parts, Mazak's SYNCREX 38/9 Swiss-Type Turning Machine is built on High Damping Composite Casting (HDCC). The unique high-rigidity base provides greater vibration-damping characteristics, less thermal growth, longer tool life and greater part surface capabilities than cast iron base machines.

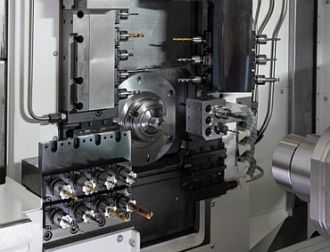

The SYNCREX 38/9 handles bar stock up to 1.5" (38 mm) and allows shops to run full bar capacity with no special bar end preparation. The machine's 9-axis configuration is standard with 10HP(7.5 kW) main and second spindles, four cross working live tools on the main spindle, and 9,000-rpm B-axis tool spindle as well as up to six live tools and a Y-axis for the counter spindle. Total machine tool capacity is 39.

A removable guide bushing adapter enables operators to preset the guide bushing outside the SYNCREX 38/9. Considered a "convertible," the machine quickly and easily changes over to operate in chucker/non-guide brushing mode to efficiently run shorter non-traditional parts that would normally require a fixed headstock lathe.

The SYNCREX 38/9 includes the new MAZATROL SmoothSt control with a full mechanical keyboard. The optional Mazak Swiss Setup Assist (MSSA) function provides fast and easy job setups, while the optional Mazak Dynamic Chip Control (MDCC) functionality increases chip-management performance.

Want more information? Click below.

Mazak
