Mastercut 5 and 6 Flute Configurations Optimize Stainless Steel and Titanium Machining

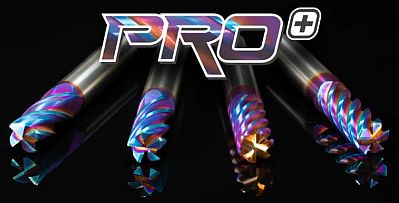

Finding the right balance between tool life and metal removal rates often comes down to the quality of the substrate and its protective shell. Mastercut Tool's Pro+ series of solid carbide end mills targets this balance by utilizing premium-grade carbide paired with advanced nanocomposite PVD coatings. Users can choose between nACo or nACRo coatings, both of which are designed to withstand the extreme thermal loads generated during high-speed machining.
The versatility of the line is evident in its geometry. With options ranging from 4 to 7 flutes, the series supports everything from traditional slotting to high-efficiency milling (HEM). For those working with challenging, heat-sensitive materials like stainless steel and titanium, the Pro+ offers specific 5 and 6-flute configurations with a fixed 45° helix. Alternatively, variable helix models are available to suppress harmonics and vibration, ensuring a smoother finish in unstable setups.
VIDEO: Mastercut Pro+ Endmills
Precision extends to the tool holder interface as well. Every Pro+ mill features an h6 tolerance shank, making them perfectly suited for thermal heat-shrink systems where runout must be kept to an absolute minimum. Whether you require a square end, ball end, or radiused corner, these tools are built to maximize material removal while maintaining the edge toughness necessary for modern production environments.
