Reducing Bottlenecks Using FANUC Integrated Robotic Finishing Systems

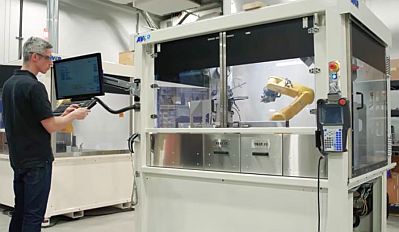

Automation in manufacturing is rapidly evolving, and technologies like AV&R's BF-X 200-c robotic cell demonstrate how advanced systems can transform not only specialized industries but also a wide range of general machine shops. While originally designed for high-precision applications such as aerospace components and medical parts, the underlying capabilities of this system make it highly adaptable for broader use across many manufacturing environments.

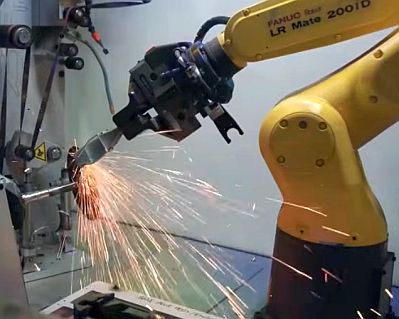

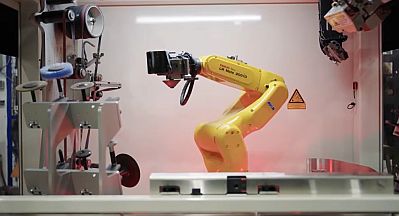

At its core, AV&R's BF-X 200-c integrates robotic handling with multi-process finishing operations, allowing tasks like cutting, grinding, blending, and polishing to be completed within a single, compact cell. This level of integration is especially valuable for smaller shops that often rely on manual labor for secondary operations. By automating these steps -- using FANUC's LR Mate 200iD 6-axis robot -- shops can significantly reduce production bottlenecks and improve throughput without expanding their workforce.
One of the most impactful features of this technology is its adaptive, force-controlled grinding capability. Traditional manual grinding depends heavily on operator skill, which can lead to inconsistencies between shifts or employees. With automated force feedback and path adjustment, the system ensures stable and repeatable material removal. This consistency is critical not only for high-spec industries but also for any shop aiming to reduce scrap rates and improve overall product quality.
The flexibility of the system also makes it well suited for high-mix, low-volume production environments. Many job shops handle a variety of parts in small batches, which can make automation challenging. However, with programmable sequences and an intuitive interface, operators can quickly switch between different part types. This allows smaller manufacturers to benefit from automation without sacrificing the versatility they need to remain competitive.
VIDEO: High-Mix Robotic Cutting & Grinding
Safety is another important advantage. Manual grinding and cutting processes often expose workers to dust, noise, and repetitive strain. By enclosing these operations within an automated cell equipped with dust extraction and safety features, shops can create a cleaner and safer work environment. This not only protects employees but can also help reduce downtime associated with workplace injuries.
In addition, the system's ability to log process parameters provides valuable data for quality control and traceability. For shops looking to expand into regulated industries or improve their internal standards, this level of documentation can be a significant asset. It enables better process monitoring, easier troubleshooting, and continuous improvement over time.
Compact robotic systems like this one are also ideal for facilities with limited floor space. Their small footprint allows them to be integrated into existing production lines without major layout changes. This lowers the barrier to entry for automation and makes it accessible to a wider range of businesses.
Ultimately, the broader application of this technology lies in its ability to standardize and streamline finishing operations. Whether producing metal brackets, automotive components, or custom machined parts, shops can leverage robotic automation to enhance efficiency, consistency, and safety. As labor challenges persist and quality expectations continue to rise, adopting flexible automation solutions like the BF-X 200-c can position manufacturers of all sizes for long-term success.
