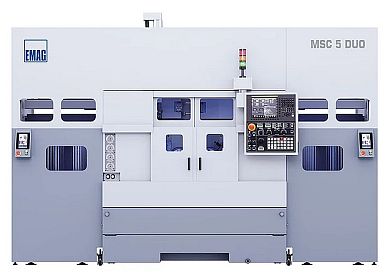

EMAG's MSC 5 Duo Elevates Your Batch Production with Twin Spindle Speed
EMAG's MSC 5 Duo stands out for its speed and its clever approach to stability.

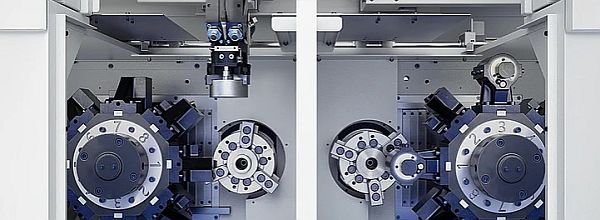

At its core, this twin-spindle lathe utilizes a specialized "split-bed" architecture. While many dual-spindle machines suffer from harmonic interference -- where vibrations from one spindle ruin the finish on the other -- the MSC 5 Duo mechanically isolates its two work zones. This means you can push both spindles to their 4,500 RPM limit simultaneously without sacrificing the micron-level precision required for sensitive fields like medical device manufacturing or high-pressure hydraulics.
Efficiency is driven by a "no wasted motion" philosophy.

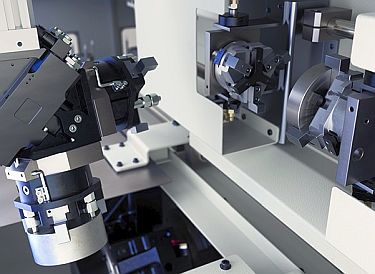

Instead of relying on external automation that requires complex syncing, the machine features a fully integrated 3-axis gantry loader. This internal system acts as the machine's own set of hands, swapping parts in and out with surgical speed to ensure the spindles spend as much time as possible cutting metal rather than waiting for manual intervention. By handling loading and unloading within the machine's footprint, it also solves the common headache of floor space management, allowing shops to pack more production power into a smaller area.
Reliability is further reinforced through thermal stabilization.
Friction creates heat, and heat causes metal to expand, which usually leads to "drift" in part dimensions over a long shift. The MSC 5 Duo counters this with thermally stabilized spindles and an intelligent coolant system that maintains a consistent environment.
Combined with a diagnostic interface that simplifies maintenance and part tracking, the machine is less of a standalone tool and more of a self-contained production cell. For shops moving away from manual batch processing toward automated, high-output environments, it offers a way to increase throughput without the typical trade-off in part quality or machine longevity.
