When the CAD Model Doesn't Exist: How Reverse Engineering Keeps Production Moving

Engineers are using portable scanners to reverse-engineer complex machinery in the field, eliminating the need for blueprints to reduce expensive downtime. This technology allows for immediate, on-site part replication, as explained by David Hill, Country Manager, Canada, Hexagon Manufacturing Intelligence.

Manufacturers often face a common problem: a critical component needs to be repaired, replaced, or improved, but the original design data is incomplete, outdated, or missing altogether.

For tooling, production, and maintenance teams, this situation is becoming increasingly familiar. Equipment remains in service for decades, documentation gets lost, and parts evolve through years of modifications and repairs. Yet when downtime is measured in thousands of dollars per hour, recreating those components quickly and accurately becomes essential.

Two recent projects -- one in nuclear power generation and another in renewable energy -- demonstrate how reverse engineering is helping manufacturers bridge the gap between physical parts and modern digital manufacturing workflows.

Capturing Reality Instead of Relying on Drawings

In both projects, engineers faced the same fundamental challenge: the physical component was the only reliable source of truth.

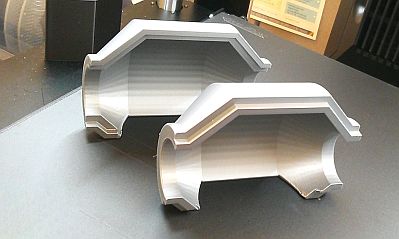

At Bruce Power, teams needed to recreate complex radiation shielding components that had changed over time and could not be fully defined by existing documentation. Meanwhile, Pienergies, a France-based energy company, needed to digitize and optimize a Pelton wheel operating inside a remote micro-hydropower station without removing it from service.

Traditionally, these situations can lead to lengthy manual measurement processes, uncertainty about part geometry, and multiple design iterations before manufacturing can begin.

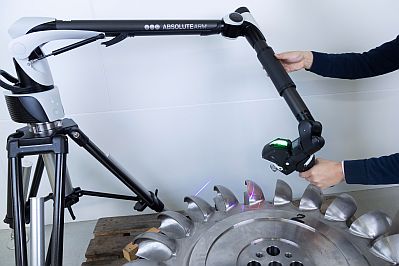

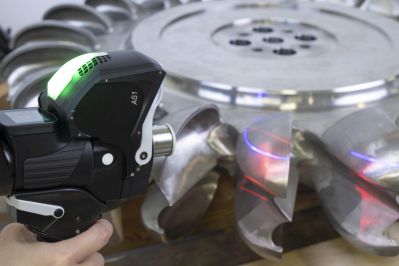

Instead, engineers captured the geometry directly from the installed components using the Absolute Scanner AS1 and Absolute Arm 7-Axis, creating an accurate digital representation of the parts as they actually existed. In applications where components could not be removed from service, portable metrology made it possible to gather high-quality measurement data directly in the field.

This approach allows teams to account for wear, modifications, and real-world conditions that are often absent from original drawings.

Reverse Engineering Creates the Digital Foundation

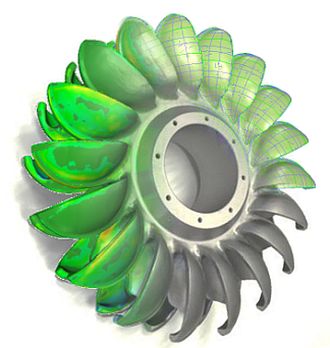

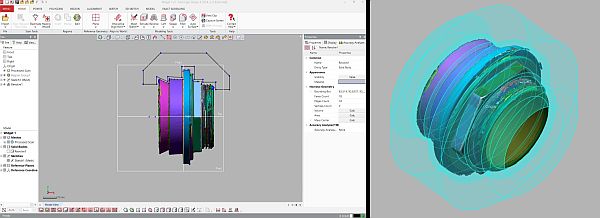

Once the parts were captured, Geomagic Design X transformed scan data into editable CAD models that could support design modifications and manufacturing.

For production and tooling teams, this step is often where significant value is created. Geomagic Design X makes it possible to:

• Recreate legacy parts when drawings are unavailable
• Generate accurate CAD models from physical components
• Incorporate years of undocumented design changes
• Create a reliable foundation for manufacturing and inspection
• Reduce the risk of costly rework caused by inaccurate geometry

Rather than rebuilding designs from scratch, engineers can start with an accurate representation of the existing component and focus their efforts on improvements.

Improving Parts Without Redesigning Entire Systems

With accurate CAD models available, engineers were able to evaluate and modify designs while maintaining compatibility with the surrounding equipment.

At Bruce Power, the digital models supported updates to radiation shielding components while preserving critical performance requirements. For Pienergies, engineers could analyze and optimize the Pelton wheel without altering the broader hydropower system.

This is increasingly important across manufacturing environments. Whether updating tooling, replacing obsolete components, or improving machine performance, organizations often need to modernize individual parts without disrupting proven systems.

Accurate digital models make those improvements possible while minimizing risk.

Inspection and Validation Remain Critical

Capturing and recreating geometry is only part of the process. Verification remains essential to ensure that manufactured parts match design intent and perform as expected.

By integrating measurement, reverse engineering, design, and inspection within a connected workflow -- including validation with Inspire inspection software -- manufacturers can identify issues earlier, reduce iteration cycles, and improve confidence before components reach production.

For critical applications, this ability to validate geometry throughout the process helps reduce uncertainty and avoid costly downstream problems.

What Production Teams Can Learn

These projects highlight a broader shift occurring across manufacturing.

Many of today's challenges are not centered on designing entirely new products. Instead, they involve maintaining, replacing, optimizing, or extending the life of existing assets. As a result, the ability to accurately capture and digitize physical components is becoming a competitive advantage.

For tooling and production organizations, reverse engineering is no longer simply a repair strategy. It is increasingly becoming a core manufacturing capability that supports maintenance, modernization, quality improvement, and digital transformation initiatives.

Whether the end goal is additive manufacturing, machining, tooling updates, or replacement part production, success depends on having accurate information at the start of the process.

In many cases, that means the first step is not opening a CAD file.

It's capturing the part that already exists.
